Stator Connector & Pigtail Harness for Polaris | RZR 1000 2012-2025 | Ranger 570 | Scrambler 850 | Sportsman 900 | 4015340

Stator Connector & Pigtail Harness for Polaris | RZR 1000 2012-2025 | Ranger 570 | Scrambler 850 | Sportsman 900 | 4015340

RMS957-106082

RM Stator

  • Save $ 4

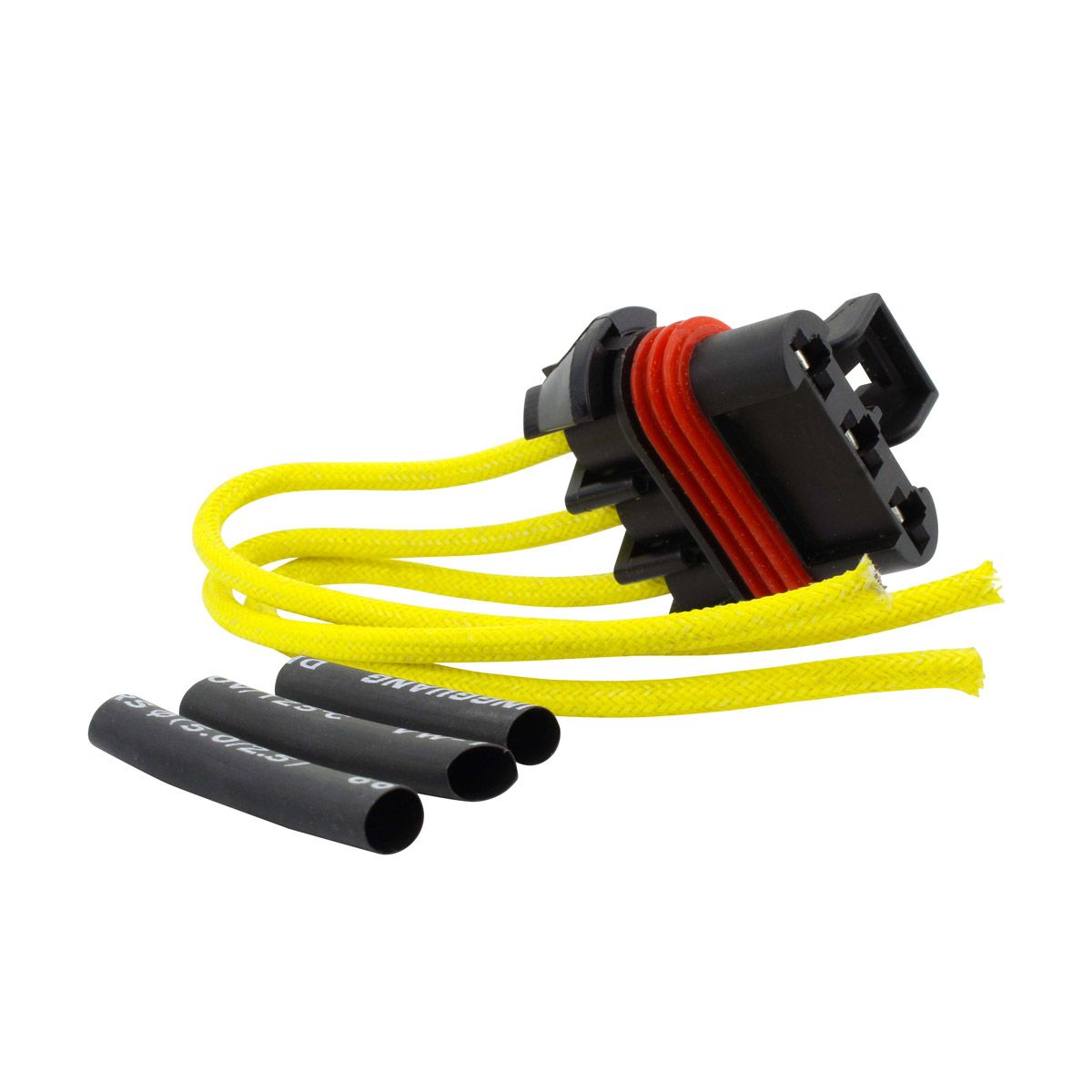

Brand new connector and pigtail harness (repair harness)

Melting the stator output plug is a common problem with Polaris machines. In some cases, when an original regulator fails, it will melt the stator side connector. With this replacement connector, you can cut out the old connector and connect a new one to avoid connection problems. Will work with most Polaris stators. Usually located a short distance from the stator cover in front of the motor.

  • Minimal Mechanical Experience Required
  • 3 Heat-shrink tubes included
  • Wire length : 540 mm (21")
  • Solder to stator output wires to replace a melted plug to the voltage regulator
  • See interchange stator part numbers below
4013013
4014839
4014402
4013970
4015340
4015292
4014406
4013990



Fitment:

PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards.
