Can-Am Axle splines comparison
Additional information about Can-Am axle shafts/inner plunging joints. Here’s what’s important: Shear stress is the most important contributor to axle failures. Shear stress is inversely proportional radius^4. So a shaft twice the diameter is 8x stronger.
| Axle | TORQ Locker | Diameter | Dia^4 | % stronger |
| ViscoLok 21 spline | TL-CANAM | 0.82 | 0.452 | 0.00% |
| SmartLok Front Axle 24 spline | TL-SM224 | 0.935 | 0.764 | 69.04% |
| Can-Am Rear Axle 30 spline | TL-SM230 | 1.1 | 1.464 | 223.83% |
The weakest point in a Can-Am axle shaft is the circlip recess where the axle diameter is even smaller. This was an issue with the ViscoLok 21 spline axles because the spider gears engaged the axle splines before and after the circlip recess. The Smart Lok spider gear and TORQ Locker axle gear can not engage the axle spines after the recess. Shearing the tip off a SmartLok 24 spline axle or a Can-Am 30 spline rear axle is not an issue.
| Axle | TORQ Locker | Diameter | Dia^4 | % stronger |
| ViscoLok 21 spline | TL-CANAM | 0.66 | 0.189 | 0.00% |
| SmartLok Front Axle 24 spline | TL-SM224 | 0.935 | 0.764 | 302.78% |
| Can-Am Rear Axle 30 spline | TL-SM230 | 1.1 | 1.464 | 671.60% |

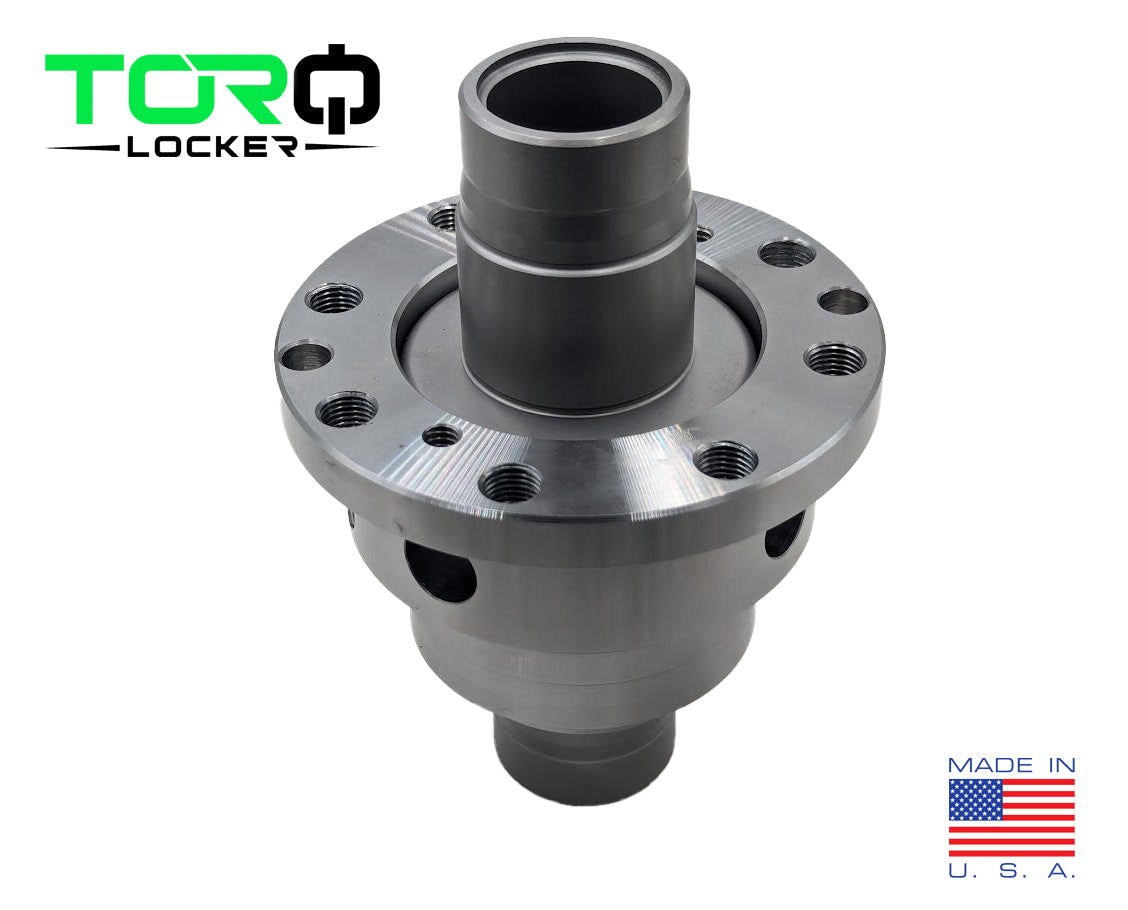

The TORQ Locker is the most advanced, strongest, highest quality automatic locking differential on the planet, proven in the most extreme vehicles from hard-core Rock Crawling, racing the King of the Hammers, Rock Bouncing, Sand Dunes and Mud Drags. Torq-Masters Industries is committed to building the highest quality locking differentials possible. To be the best, we build with the best, TORQ Locker is 100 percent Made in the USA with 100 percent USA raw materials.
Keep it Simple, no air-lines to leak, compressors to fail, cables to adjust or electrical gremlins, the TORQ Locker gives you piece of mind as a reliable, mechanical, automatic locker that can handle any terrain. The TORQ Locker design eliminates and integrates pesky locker components seen in all other automatic drop-in lockers. The spacers are gone and the dowel pins are now machined into the Cam Gears to form key-ways. The innovative design features of the TORQ Locker have three game-changing benefits;
- No dowel pins to install or fail. The Key-Way design of the Cam gears can’t shear, ever.
- Easiest Locker on the market to install, no spacers, no dowel pins, no measurements.
- Best On-Road manners of any automatic locker; the Key-Way design is more forgiving than the rigid dowel pin design. The Key-Way allows for smoother locker engagement. By eliminating the spacers they eliminated the leading cause of the pop some people experience with automatic lockers.
To build the TORQ Locker, Torq-Masters Industries demands the highest quality control standards, protocol and materials. The TORQ Locker is CNC Machined from USA made 9310 steel alloy for maximum durability and long life using our proprietary manufacturing processes in our facility in Rochester NY. Locker components are then heat treated with proprietary procedures in a TS16949 certified facility with 100 percent quality audits utilizing electron microscopy testing. Quality control of this caliber very rare in the Aftermarket Off-Road Industry, but Torq-Masters goes the extra mile to build the best, because you deserve the best.
Torq-Masters team of engineers make every effort to ensure that the model fitment listed is accurate. However, due to vehicle manufacturers differential options, using available inventory, prior vehicle owner modifications, etc. it is the customers responsibility to confirm that the model TORQ Locker they order fits their differential.
DM/3-18-25
