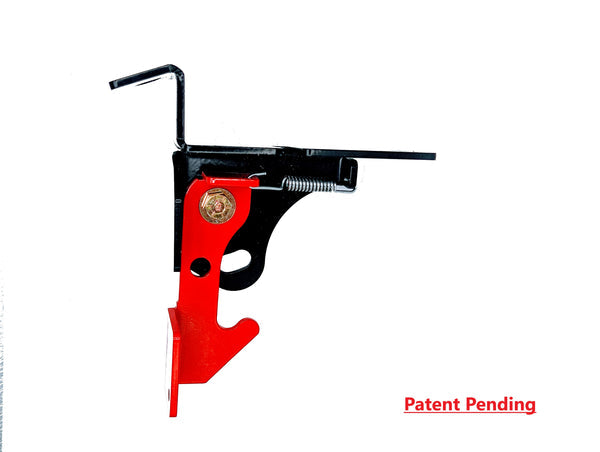

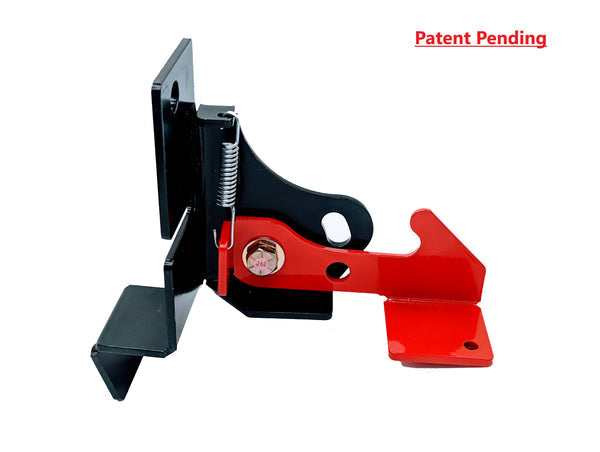

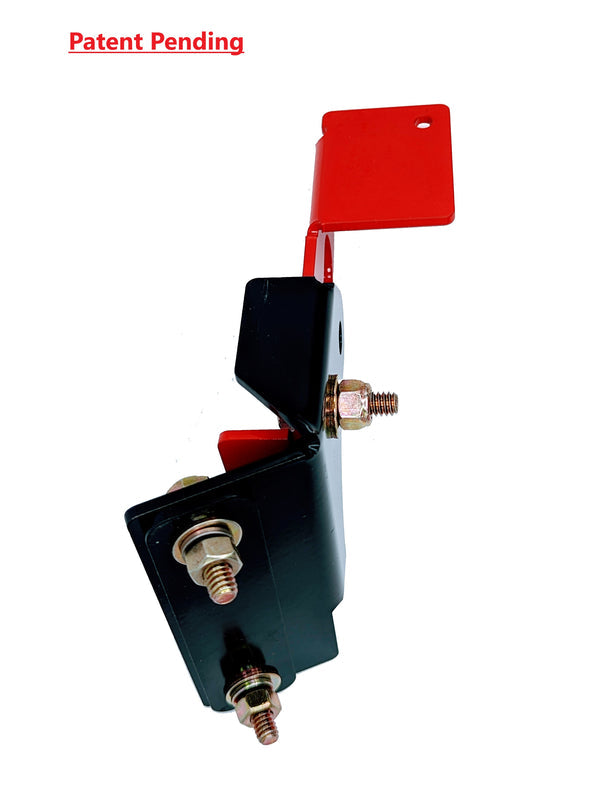

KAWASAKI KRX 1000 PARKING BRAKE by Spring Brake Thingy

Heavy Duty Parking Brake for your KAWASAKI KRX 1000-with locking feature.

Installation:

Installs in less than 2-3 minutes, guaranteed the quickest and easiest install and use on the market.

Remove the 12mm nut from behind the brake pedal

Remove the plastic rivet from the left side of the brake pedal

Install parking brake on to factory stud, replace and tighten the 12 mm nut, install supplied 1/4" bolt and nut where the plastic rivet was.

To engage, press brake pedal with right foot, slide the red arm to the right with your left foot to lock the pedal down.

Simply push the brake pedal again to release.

ecs 4-29-24
