Polaris RZR XP 1000/Turbo | XP 4 1000/Turbo Forward Camber Adjustable A-Arm Kit by ZBroz
Polaris RZR XP 1000/Turbo | XP 4 1000/Turbo Forward Camber Adjustable A-Arm Kit by ZBroz

Polaris RZR XP 1000/Turbo | XP 4 1000/Turbo Forward Camber Adjustable A-Arm Kit by ZBroz

K82-0610-01

Zbroz

SKU: K82-0610

Description

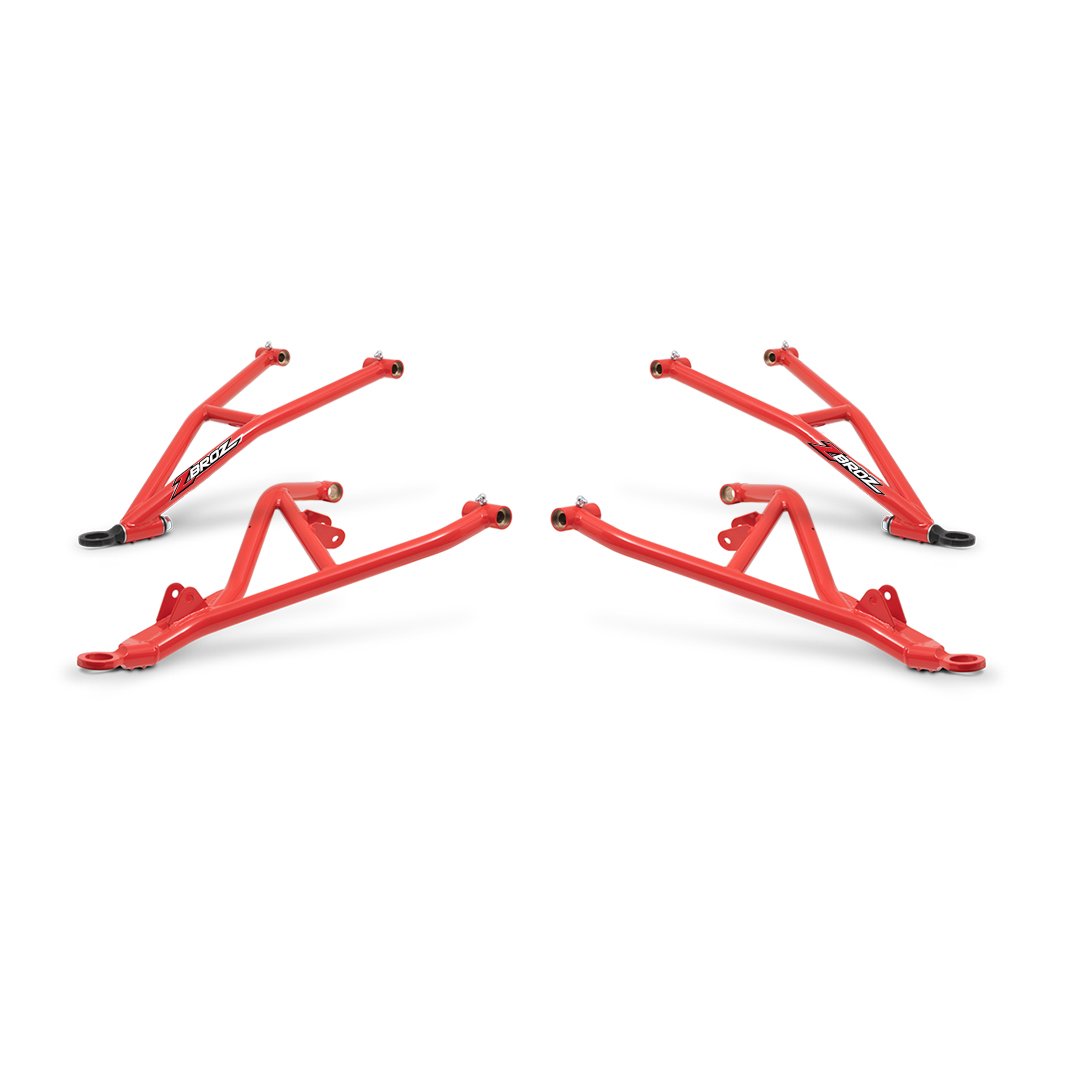

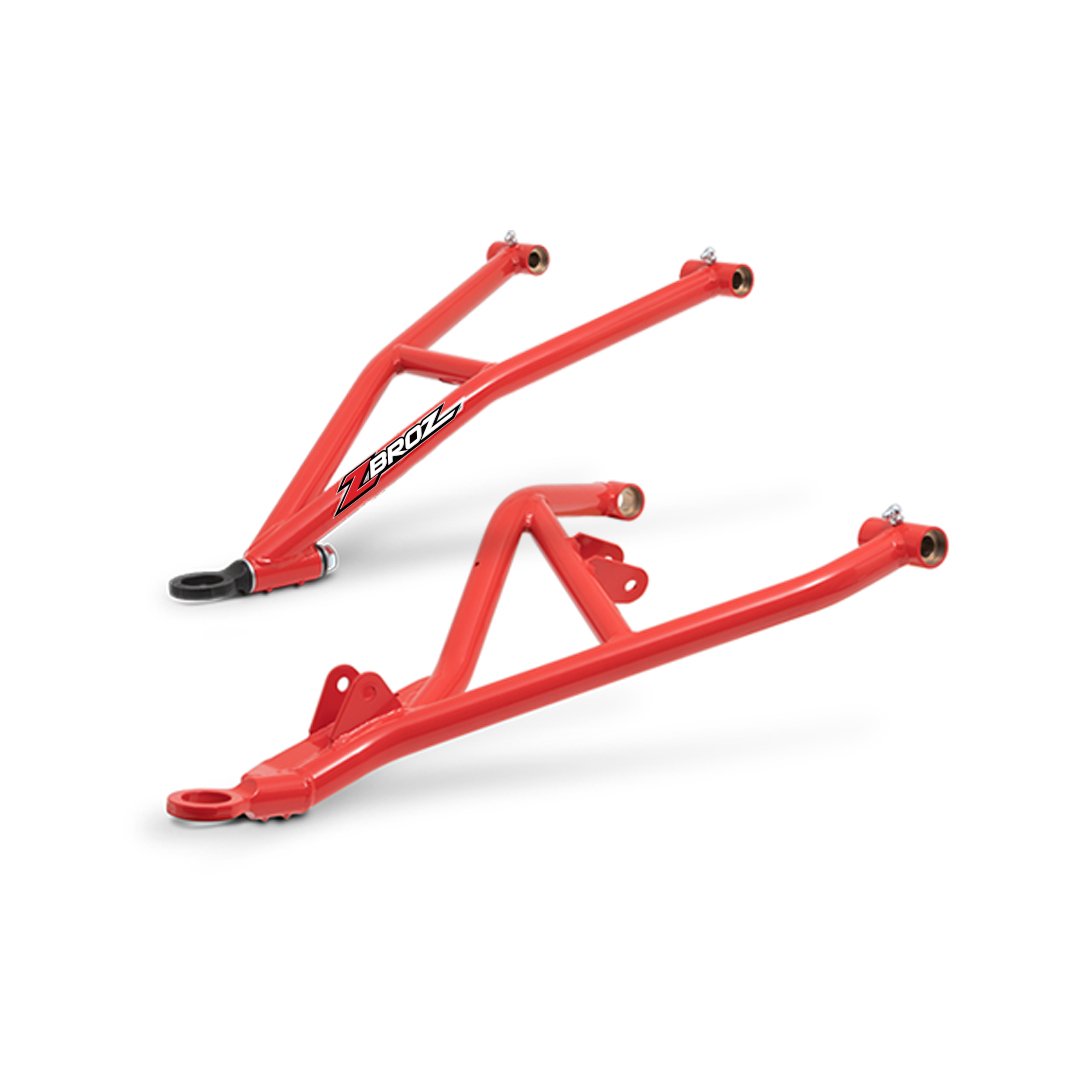

Built from 1.125" Diameter DOM steel tube to take on any mountain trail, rock crawling, and desert/dune rally action.  All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality.  All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off-road driving.

Our Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting your front axles.  Zbroz Racing was the original innovator of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002.  We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with our RZR 800 LT kit before other competitors.

+2" Forward Design Looking to run larger tires?  Larger tires are key for mountain trail, rock crawling, and high-speed desert/dune racing.  Easily fits 30" to 33" tall tires without modification or fender trimming by simply installing this A-Arm Kit.  Our +2 forward design extends your wheelbase forward 2 inches without changing steering geometry and remaining within all OEM steering component specs.

The Lower A-Arms feature our Camber Adjustable ball joint housing that allows you to fine-tune the camber settings on your RZR.  Simply unbolt the ball joint housing and add or remove included camber shims.  Each shim will adjust the camber by 1 degree.  All Camber Adjustable A-Arm Kits are shipped with a negative 1-degree camber.  Exactly what you need for serious mountain trail, rock crawling, and desert/dune riding.  This Camber Adjustable feature allows total adjustment so that you can fine-tune the camber on each side.  We've experienced brand new RZR's where the frame or frame a-arm mounting points are slightly off side to side. With this Camber Adjustable A-Arm Kit, you will have complete fine camber adjusting control.

Our ball joint housing specs are compatible with OEM and most aftermarket ball joints.  We offer pre-installed ball joints using our signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms.  And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.

Easy to install with a jack or lift in your driveway or garage with basic tools.

Kit Includes:

- Upper A-Arms with pre-installed Brass Bushings and Pivot Grease Zerks

- Lower A-Arms with Pre-installed Brass Bushings and Pivot Grease Zerks

- (8) Camber Shims

- Ball Joints


Available Colors: Raw, Black, Red

Fitment:

  • Polaris RZR XP 1000 (2014-2021)
  • Polaris RZR XP 1000 Turbo (2014-2021)
  • Polaris RZR XP 4 1000 (2016-2021)
  • Polaris RZR XP 4 1000 Turbo (2016-2021)

Shipping only $24.99 with in the lower 48 states.

CB 11/13/24
