Street Legal Kit for Polaris RZR Pro XP/Turbo R/Turbo S/Turbo/1000/900 2015+ by Ryco
7101SKU 7101
Fits: Turbo R (2/4 seat), Pro XP (2/4 seat), Turbo S (2/4 seat), Turbo (2/4 seat), 1000 (2/4 seat), 900 2015+ (2/4 seat)
Ryco street legal kits have a turn signal with an integrated horn button and emergency flashers. The Ryco kit interfaces with the gauge pod in most UTVs to show when the turn signal is actuated. On the Polaris digital dash a green light flashes on each side of the dash to indicate when the signal is actuated for left or right. Some 2019 models may require separate led turn signals to be installed that are provided in the kit. The analog dash has one green (<>) light in the middle that flashes.

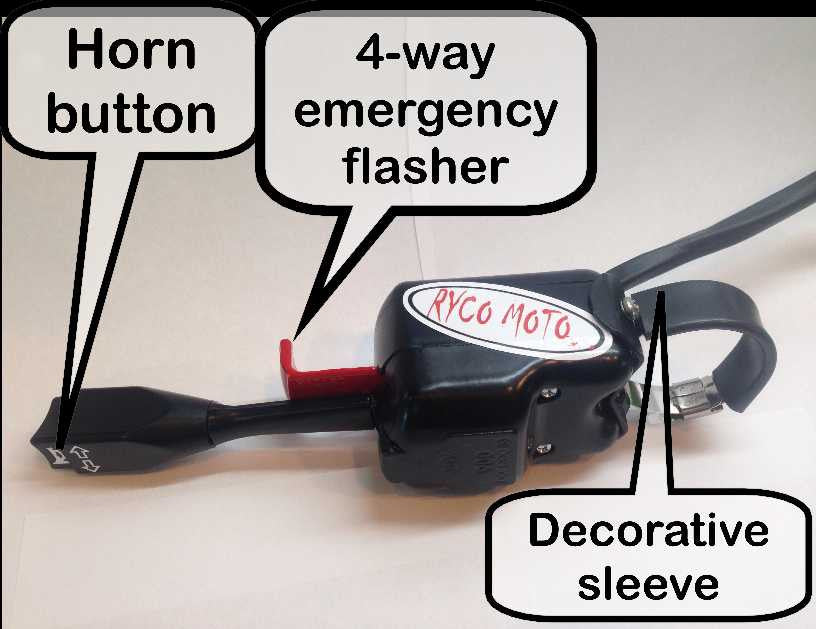

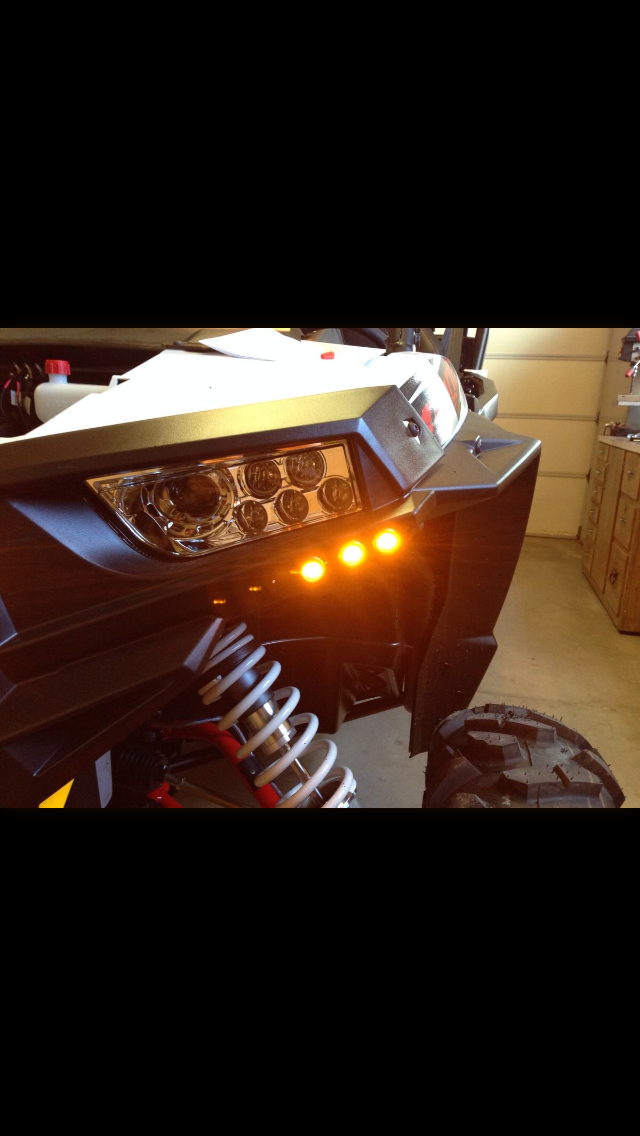

Three LED lights are used for each left and right turn front turn signal with a steering column mounted signal stat that also includes the horn button. The factory rear tail lights are used for the left and right turn signals. Illuminated license plate holder with night time running lights are integrated into the system to meet state regulations for highway vehicles. Wiring harness and detailed instructions are included with each kit. Satisfaction guaranteed.
- Self Canceling if you forget and leave the blinker on (turns off blinker after a couple of minutes)

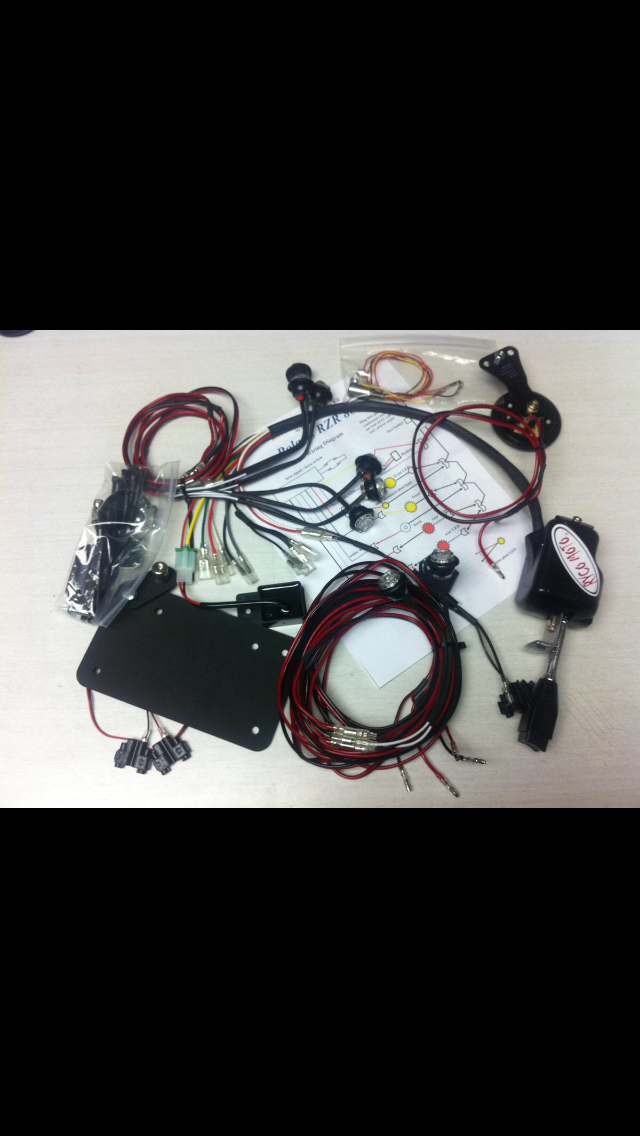

Kits contain:
- 1x Wiring Harness
- 6x LED Mini Lights with Bullet Ends for front turn signals

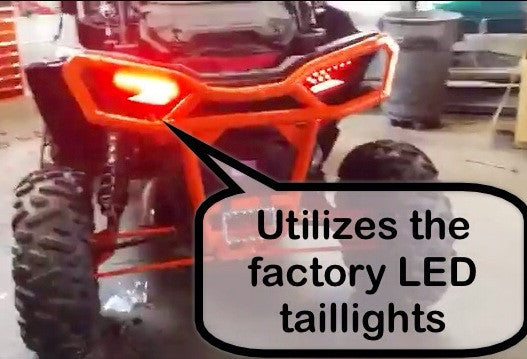

- 2X Rear tail lights use factory tail lights for a clean professional look
- 1X License plate holder and LED light
- 1X Loud Horn (105 db)
- 1x Electronic LED Flasher
- 2x LED Turn Indicator Lights (left and right)
- Kit can integrate with factory speedometer to indicate turn signal flashing
- 1x Horn Push-button Switch integrated with the signal stat
- 1X Waterproof Signal Stat
- 2x Lead Wires for Indicator Light with Butt Connectors
- 4x Spade Terminals for Horn and Horn Switch
- 12x Female Bullet Terminals for the Mini Lights
- Complete wiring harness
- 1x Instruction Sheet
- 10x Wire Ties
Other applications available if yours is not listed. Call with your brand, model, and year (801 367 1395)
Note: Polaris RZRs equipped with front bumpers may require locating front signal lights inboard and or outboard of the headlights.
Click Here for RZR Turbo/1000/2015+ 900 Installation Instructions:
Older Ryco kits that have an analog dash turn signal light that does not flash are eligible for a free upgrade to make the light flash. Contact us for this.
Please call if you cannot find your model. Pro UTV Parts has the kit! 801 367 1395
Be aware that Polaris machines with the Ride Command Display, and the 2017 Polaris RZR Turbo instrument cluster, do not include factory turn signal indicators. When installing the RYCOMOTO UTV street legal kit on these machines, DO NOT install the RYCOMOTO harness pin/wire in positions 6 and 7. When using a RYCOMOTO kit on a machine with Ride Command Display or the 2017+ Polaris RZR Turbo, the enclosed dash indicator light assembly may be used.
Click Here for Dash Mount Indicator Instructions
No returns if sealed wiring packets are opened or box contents are installed.
Free shipping with in the lower 48 states.
