Vent Racing RZR Under Hood Accessory Fuse Block and Mount
VRTFBRZRHVent Racing RZR Fuse Block Specs
- Capacity 40 Amp max load
- 12 Fused Circuits
- Turns on with your ignition
Sloppy wiring jobs are ugly, potential safety hazards to you and your machine, and can damage your expensive accessories. The OEM accessory wire is too small and only has a 10 amp fuse. We have seen and have fixed a lot of bad wiring in our shop. Fixing these jobs and even installations were time consuming and difficult. We needed a way to make initial installation fast and easy, make future accessory installs simple, take extra load off the under-sized OEM wiring, and make it easily accessible for maintenance.

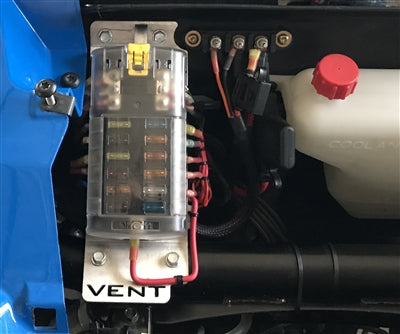

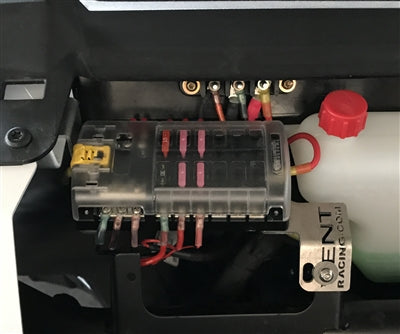

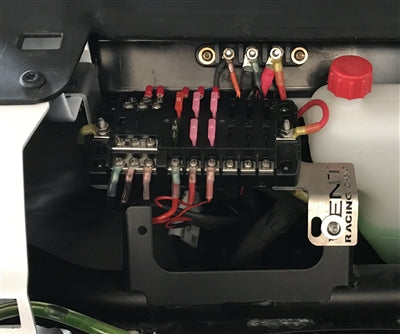

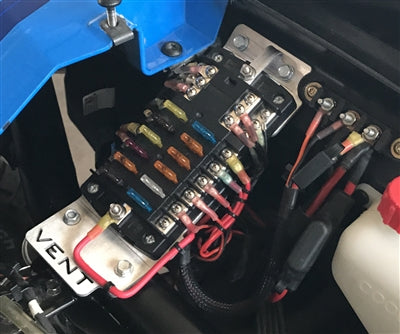

Our 12 fuse under-hood kit is that solution. Like the name says it provides room for 12 fused accessories on a marine grade body, mounted on a laser cut plate specifically for your application, where they are easy to access and still protected from extreme conditions. The fuses are relayed so you get direct battery power without being able to accidentally leave something on and kill your battery. This fuse block is pre-wired to connect to the factory busbar and it is pre-assembled on the mounting plate so install is only 4 bolts to install.
You don’t have to settle for a tangled hazard under your dash. Now you can have a clean, professional looking fuse block in just a few minutes. Fits 2014+ RZR 1000, RZR900, RZR 900S, RZR 1000S RZR XP Turbo including RZRs with the digital display upgrade.
Notes:
1. Add on Busbar Wiring harness not required for 2019 + RZRs
2. 40 Amp max load
Please select the correct year and model in the drop down menu. The year and model do matter. If you receive the wrong block for you machine because you chose the wrong year and make, you will be responsible for the return shipping and the shipping for the fuse block you actually need. So one more time, please select the correct year and model in the drop down menu.
Please select the correct year and model in the drop down menu. The year and model do matter. If you receive the wrong block for you machine because you chose the wrong year and make, you will be responsible for the return shipping and the shipping for the fuse block you actually need. So one more time, please select the correct year and model in the drop down menu.
Shared shipping only $18.99 in the Lower 48 States
